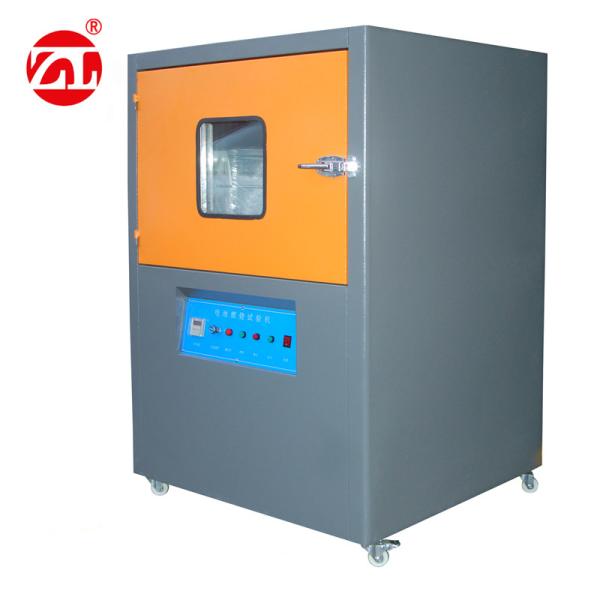

High Temperature Battery Testing Machine PLC Man - Machine Interface Control

Brand Name : Zhongli

Model Number : ZL-3205

Certification : ISO,CE

Place of Origin : Guangdong,China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 100 sets per month

Delivery Time : 7 days after the order confirmed

Packaging Details : Packaged in wooden case （fumigation free）

Applicable Industry : Battery Industry

Control method : PLC Man-machine interface

Burning time : 0~ 999.9s±0.1s

Test round hole diameter : 102mm

Remote control distance : 10m,with no barrier

Flame screen height : 38mm

Weight : about 100kg

Warranty : 12 months

Contact Now

High Temperature Battery Testing Machine PLC Man-Machine Interface Control
High Temperature Battery Burning Test Machine
Test Objective: This machine is suitable for lithium battery (or battery pack) burning resistance test.
Test Description
  • The lithium ion battery or battery pack is placed on a steel wire gauze located on a round hole with diameter of 4 inches (102mm)
  • The wire gauze is composed of wire with 20 mesh per inch and diameter of 0.017 inches (0.43mm)
  • The wire gauze is placed at a distance of about 38mm above the flame
  • Cover an octagon aluminium wire netting around the sample with specifications: distance on both sides parallel to each other is (610 + 10)mm, height is (305 + 5)mm, aluminum wire diameter of 0.25mm, mesh number 16-18
  • Ensure the test sample is heated on the wire net until explosion or the lithium battery (battery pack) is ignited and burned out
Test Results
After the test, the components of the battery (except for dust products) or the whole battery may not penetrate the aluminum mesh.
Equipment Specifications
Parameter Specification
Control method PLC Man-machine interface
Burner Bunsen Burner, pipe orifice diameter 9.5mm, about 100mm long
Burning time 0~999.9s ±0.1s
Test round hole diameter 102mm
Remote control distance 10m, with no barrier
Flame screen height 38mm
Test octagon mesh enclosure width Distance between opposite faces is 24" (about 152mm), eight sides are movable type for convenient replacement and disassembly
Test octagon mesh enclosure height 12" (305mm)
Octagon mesh enclosure material Aluminum mesh, 16-18 meshes per inch, aluminum wire diameter 0.010inch (0.25mm)
Test parts Stainless steel, one side has 5mm toughened glass for visibility, top fan and external exhaust duct interface reserved
Volume of protective bin 750×750×1000mm
Volume of controller 200×150×1000mm
Combustion gas Methane (self provided by customer)
Power supply 220V, 50/60Hz
Power 0.75kW
Weight About 100kg
Service Conditions
  • Ambient temperature: -10~30℃
  • Ambient humidity: <60%
  • Combustion gas: liquefied petroleum gas or industrial methane (self provided by customer)
Standard Configuration
Item Quantity
Test host 1 set
Octagon mesh enclosure 1 set (removable)
Backup aluminum mesh 8 pieces
Steel wire gauze for sample placement 1 set
Cover plate 1 set
Wire controller 1 set
Telecontroller 1 set
Gas pipe 1 strip
Factory certificate 1 piece
Product specification 1 piece
Compliance Standards
  • UL 2272-2016 Outline of investigation of electric balance car
  • UL 2271-2013 Battery for light electric vehicle
  • GB/T 31241-2014 Safety requirements for lithium ion battery and battery pack for portable electronic products
  • GB/T 18287-2013 External short circuit requirements of General specification for lithium ion batteries for cellular telephones
  • GB/T 8897.4-2008 The fourth part of the primary battery safety requirements of lithium batteries
  • YD/T 2344.1-2011 Lithium iron phosphate batteries for communication - part one: integrated batteries
  • GB/T 31485-2015 Safety requirements and test methods for power batteries for electric vehicles
  • GB/T 21966-2008 Safety requirements for lithium primary batteries and batteries in transit
  • MT/T 1051-2007 Lithium ion battery for miner's lamp
  • YD 1268-2003 Safety requirements and test methods for lithium batteries and chargers for mobile communication handsets
  • GB/T 19521.11-2005 Safety code for inspection of hazardous properties of lithium batteries
  • YDB 032-2009 Backup lithium ion battery pack for communication
  • UL 1642:2012 Lithium battery standard
  • UL 2054: 2012 Household and commercial storage battery
  • UN38.3(2012) Recommendations on the transport of dangerous goods - Test and standard manual part 3
  • IEC62133-201 Safety requirements for battery and storage battery with alkaline or non acid electrolytes
  • IEC 62281: 2004 Safety requirements for lithium primary battery and battery pack in transit
  • IEC 60086: 2007 Primary battery part 4 safety requirements of lithium battery
  • GJB150, GJB360, GJB548, GJB1217, MIL-STD-810F, MIL-STD-883E etc. test specification
Product Structure Features
  • The box is made of stainless steel for easy cleaning, with tapes covered inside the burning box body for easy maintenance
  • A visible toughened glass window is located in the front of the box body
  • The upper part of the box is equipped with an exhaust flue that can be externally connected with an exhaust tube for quick heat removal during testing
  • Remote control ignition by telecontroller
  • The bottom of the protective bin is provided with universal castors for convenient carrying and positioning
