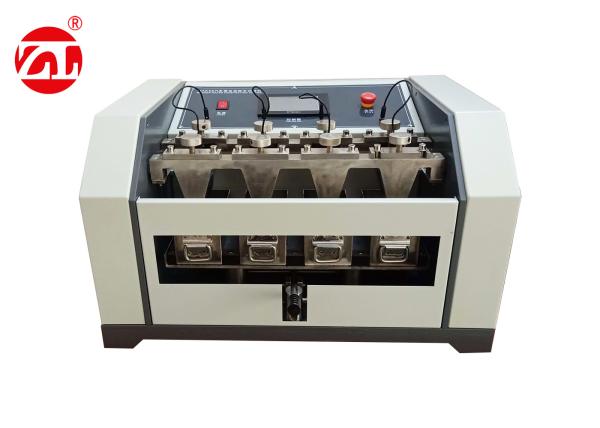

ASTM-D 2099 Waterproof Leather Dynamic Testing Machine
Introduction:
The test piece was placed on the Maeser dynamic waterproof zigzag test machine, the surface of which was outward, and the test piece was partially infiltrated into the water, and the zigzag was simulated on the Maeser dynamic waterproof zigzag test machine to simulate the wearing state of the test piece. The number of tests or the length of time required to evaluate the dynamic water resistance of the test material.
Meeting Standard:
Meets SATRA TM34, ASTM-D 2099, ALCA E56 and other standards.
Technical specifications:
1. Test speed: (90 ± 5) rev / min.
2. Zigzag angle: (30 ± 1) o.
3. Number of test pieces: 4 samples were tested at the same time.
4. Fixture spacing: (60 ± 1) mm.
5. Volume: 70cm*62cm*55mm.
6. Weight: 60kg.
7. Power: AC220V, 10A.
Random accessories:
1. One mold die.
2. Diameter 3mm stainless steel ball 4kg.
3. 1 copy of the manual, 1 warranty card, and 1 quality inspection report.
4. One power cord.
| Test speed | (90 ± 5) rev / min. |
| Zigzag angle | (30 ± 1) o. |
| Number of test pieces | 4 samples were tested at the same time |
| Fixture spacing | (60 ± 1) mm. |
| Volume | 70cm*62cm*55mm. |
| Weight | 60kg |
| Power | AC220V, 10A. |
Random accessories:
1. One mold die.
2. Diameter 3mm stainless steel ball 4kg.
3. 1 copy of the manual, 1 warranty card, and 1 quality inspection report.
4. One power cord.
Machine Details:
