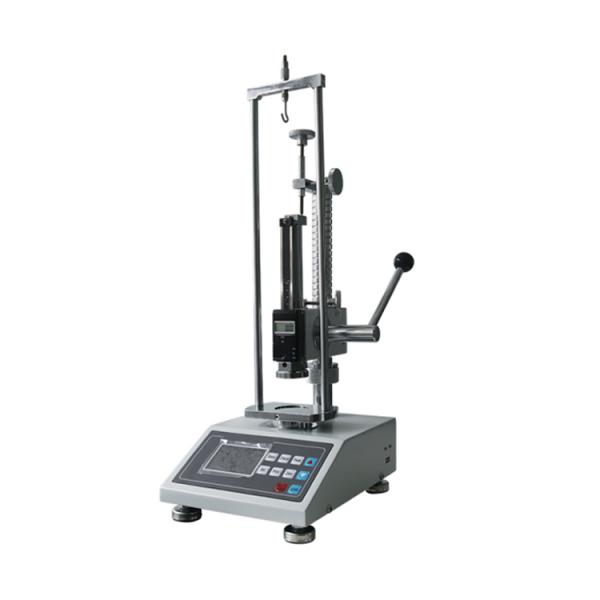

ISO 7500 ASTM E4 Spring Testing Machine
Product Overview:
lIt is a product improved and upgraded on the basis of spring tension and compression testing machine.
lThe conventional black and white display screen is changed to a color display screen.
lThe conventional 44mm×30mm small display screen is changed to a 74.5mm×50mm large color display screen.
lThe user's comfort is greatly improved from the perspective.
lThe network port is added, the computer and circuit board parameters can be set, and the force value data can be received through the network.
lThe exterior adopts a reinforced metal shell, which greatly improves the anti-interference ability of the system.
lAdopts advanced, highly integrated integrated microcontroller.
Product Features:
English color screen display, Better humanized machine interface settings.
High precision and high resolution.
Three measurement units can be switched: N (Newton), kg (kilogram), Lb (pound).
Gravity acceleration setting, higher measurement and conversion accuracy.
Store 99 sets of test data, and view, store and delete data directly on the machine.
Print stored measurement data and maximum, minimum and average values.
Communication function: USB interface is used to communicate with PC, and the synchronous test function can be connected to the computer for testing. The test force curve and detailed test force records during the test process are synchronously displayed on the computer.
Technical Specifications:
Small Capacity (3 Models)
| Model | ZL-10 | ZL-20 | ZL-30 |
| Maximum Test Machine Load | N | 10 | 20 | 30 |
| kg | 1 | 2 | 3 |
| Lb | 2.2 | 4.5 | 6.5 |
| Minimum Resolution | N | 0.001 |
| kg | 0.0001 |
| Lb | 0.0001 |
| Pressure Plate Diameter | 34mm |
| Maximum Free Length of Measurable Spring | 80mm |
| Ground Moving Ruler Travel | 60mm |
| External Dimensions | 490*280*300mm |
| Net Weight | About 14.5kg |
Medium Capacity (6 Models)
| Model | ZL-50 | ZL-100 | ZL-150 | ZL-200 | ZL-300 | ZL-500 |
| Maximum Test Machine Load | N | 50 | 100 | 150 | 200 | 300 | 500 |
| kg | 5 | 10 | 15 | 20 | 30 | 50 |
| Lb | 11 | 22 | 33 | 45 | 65 | 110 |
| Minimum Resolution | N | 0.001 | 0.01 |
| kg | 0.0001 | 0.001 |
| Lb | 0.0001 | 0.001 |
| Pressure Plate Diameter | 48mm |
| Maximum Free Length of Measurable Spring | 150mm |
| Ground Moving Ruler Travel | 90mm |
| External Dimensions | 570*280*300mm |
| Net Weight | About 18kg |
Large Capacity (4 Models)
| Model | ZL-1000 | ZL-2000 | ZL-3000 | ZL-5000 |
| Maximum Test Machine Load | N | 1000 | 2000 | 3000 | 5000 |
| kg | 100 | 200 | 300 | 500 |
| Lb | 220 | 450 | 650 | 1100 |
| Minimum Resolution | N | 0.1 |
| kg | 0.01 |
| Lb | 0.01 |
| Pressure Plate Diameter | 108mm |
| Maximum Free Length of Measurable Spring | 200mm |
| Ground Moving Ruler Travel | 150mm |
| External Dimensions | 790*610*320mm |
| Net Weight | About 67kg | About 79Kg |
