SATRA TM93 Shoelace Eyelet Abrasion Tester 6-Station

Brand Name : ZL

Model Number : ZL-7057A

Certification : CE,ISO

Place of Origin : Guangdong,China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 40 sets / month

Delivery Time : 7-10 days

Packaging Details : SATRA TM93 Shoelace and Eyelet Abrasion Testing Machine will be Packaged in wooden case

Name : SATRA TM93 Shoelace and Eyelet Abrasion Testing Machine

Stations : 6

Weight : (450 ± 5) g

Stroke : (76 ± 2) mm

Fiberboard : (25 × 25 × 3) mm

Eyelet Hole Diameter : Ø4.5 mm

Dimensions : (55 × 56 × 40) cm

Contact Now

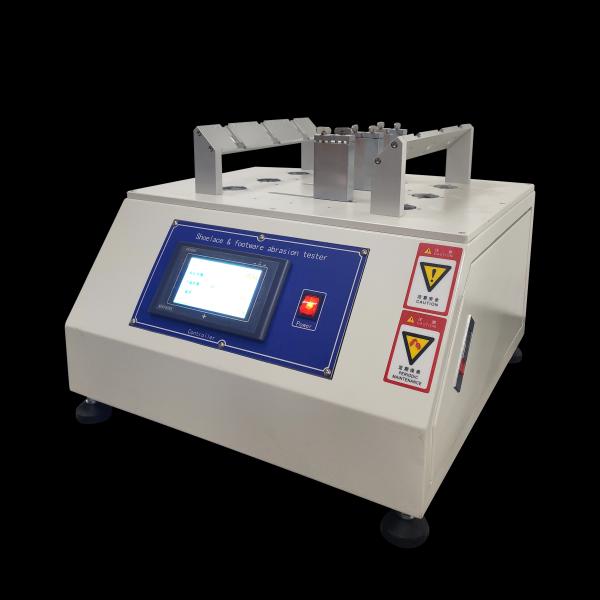

SATRA TM93 Shoelace and Eyelet Abrasion Testing Machine

Scope of Application:

This machine is suitable for testing all types of shoelaces and eyelets. One end of the shoelace is passed through an eyelet clamped by a fiberboard, with the shoelace and eyelet positioned at a 90° angle and the fiberboard and shoelace at a 45° angle. The shoelace is then tightened under standard tension and repeatedly pulled back and forth through the eyelet. The test stops when the shoelace is damaged. The test complies with the SATRA TM93 technical standard.

Product Specifications:

Stations	6 groups
Weight	(450 ± 5) g
Stroke	(76 ± 2) mm
Fiberboard	(25 × 25 × 3) mm
Eyelet Hole Diameter	Ø4.5 mm
Dimensions	(55 × 56 × 40) cm
Power Supply	1-phase, AC 220V, 3A
